Dynamic Sign - CNC Handle*

This still remains one of the most feature packed handles for it's price point.

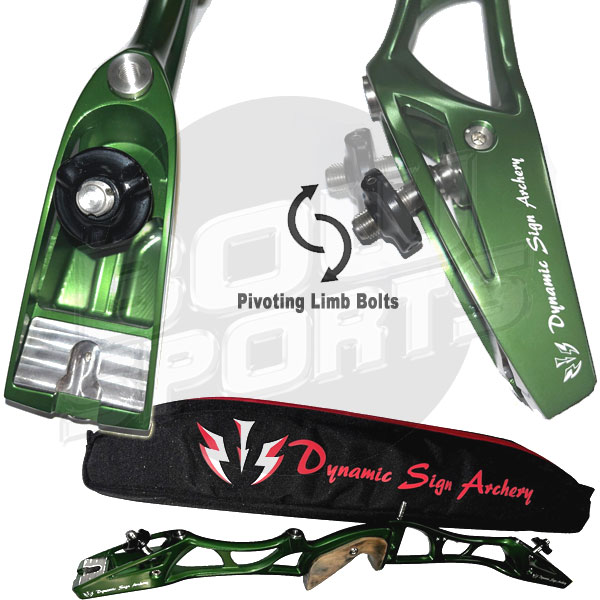

Full CNC machined handle featuring micro adjust and pivoting limb bolts for maximum limb contact.

The limb adjustment dowels feature left and right adjustability and allows for micro adjustments to the limbs ensuring they always stay centered and balanced throughout the draw cycle.

Specifications:

Total weight 25*: 1275g.

• Tiller bolt

Movement in length axis free moving

Movement in side axis: 2mm adjustable via 2 blocking screws

• Tiller head (screw)

Tiller locking: tiller head locks automatically by 3 spring balls.

Limb system with swivel plate

• System: ILF

3rd axis (swivel plate) adjustable + 0,5mm for twisted limbs

• Plunger hole

2 holes with 5/16-24 UNF, one hole is behind the pivot point

• Bushings

Stabiliser: 1 stainless steel bushing with 5/16-24 UNF

Dampers: 4 stainless steel bushings with 5/16-24 UNF

• Material:

Grip: American walnut tree

Steel parts: Stainless steel

Alloy: AL7075

Bag: Nylon with 3mm foam and zip, inner bag for small tools or plunger
